MySQL Workbench: Installation, Home Screen Tabs, and Localhost Connection

In this beginner's guide, we will introduce you to MySQL Workbench, an indispensable tool that will empower you to dive into the world of MySQL databases. Before we kick off our learning adventure, it's essential to ensure you have MySQL Workbench installed and ready on your machine.

MySQL Workbench will be our trusted companion throughout this course. It provides a user-friendly visual interface that simplifies the design, development, and administration of MySQL databases. In the first section, we'll cover the installation process of MySQL Workbench. You'll learn how to download and install in from the official MySQL website.

Once MySQL Workbench is installed, we'll dive into the process of opening the application. You'll discover different methods to access MySQL Workbench, whether it's through a desktop shortcut, the Start menu (Windows), or the Applications folder (macOS). We'll ensure you're equipped with the knowledge to quickly locate and open MySQL Workbench on your computer.

The Home screen of MySQL Workbench is the central hub where you'll perform various tasks and access essential features. We'll explore the Home screen tabs, including MySQL Connections, Models, and MySQL Migration Wizard. Then, we will show you how to set up a "localhost" connection if it is not already present in the MySQL Connections tab.

So, by following this beginner's guide, you'll be equipped with the necessary knowledge and skills to embark on your MySQL journey with confidence. Let's dive in and unleash the power of MySQL Workbench to create, manage, and explore MySQL databases efficiently.

MySQL Workbench is a comprehensive visual tool provided by MySQL that enables users to design, develop, and administer MySQL databases. It offers a graphical user interface (GUI) that simplifies various tasks related to database management and development.

To install MySQL Workbench, follow these steps:

Step 1: Visit the MySQL website:
Go to the official MySQL website at https://dev.mysql.com/downloads/workbench/. This page provides the downloads for MySQL Workbench.

Step 2: Select your operating system:
On the MySQL Workbench downloads page, you'll see a list of available versions for different operating systems. Choose the appropriate version for your operating system. For example, if you're using Windows, select the Windows version.

Step 3: Download the installer:
Click on the "Download" button next to the version you selected. This will initiate the download of the MySQL Workbench installer.

Step 4: Run the installer:
Once the download is complete, locate the installer file and run it. On Windows, it will typically be an .msi file, while on macOS it will be a .dmg file.

Step 5: Follow the installation wizard:
The installation wizard will guide you through the installation process. Follow the on-screen instructions, which may include accepting the license agreement, choosing the installation location, and selecting the components to install.

Step 6: Configure the installation:
During the installation, you may be prompted to configure the MySQL server connection settings. Provide the necessary details such as the hostname, port, username, and password. If you don't have a MySQL server installed, you can choose to install one as part of the MySQL Workbench installation or configure it later.

Step 7: Complete the installation:
Once you've configured the installation settings, click "Next" or "Finish" to complete the installation process. The installer will copy the necessary files and set up MySQL Workbench on your system.

Step 8: Launch MySQL Workbench:
After the installation is complete, you can launch MySQL Workbench from the Start menu (on Windows) or the Applications folder (on macOS). You can also create a shortcut on your desktop for quick access.

Once you had finished installing MySQL Workbench, to get started, you need to open the MySQL Workbench. To open MySQL Workbench on your computer, follow these steps:

Locate the MySQL Workbench icon
MySQL Workbench typically creates a shortcut icon on your desktop or in the Start menu during the installation process. Look for the MySQL Workbench icon, which is usually represented by the MySQL logo or the name "MySQL Workbench."

Double-click the MySQL Workbench icon
Simply double-click on the MySQL Workbench icon to launch the application. This action will open MySQL Workbench and display the Home screen.

Start menu alternative (Windows)
If you can't find the desktop shortcut, you can also open MySQL Workbench using the Start menu on Windows. Click the "Start" button on the taskbar, then navigate to the "MySQL" folder. Inside the folder, you should find the MySQL Workbench application. Click on it to open MySQL Workbench.

Applications folder alternative (macOS)
On macOS, MySQL Workbench can be found in the Applications folder. Click on the "Finder" icon in the dock, then open the "Applications" folder. Look for the MySQL Workbench application and double-click on it to launch MySQL Workbench.

Note: If you cannot find the MySQL Workbench icon or shortcut, you can search for it using the search function on your computer. Type "MySQL Workbench" in the search bar, and the operating system should display the application in the search results. Click on the search result to open MySQL Workbench.

In this beginner's guide, we will take you on a journey through the Home screen tab of MySQL Workbench, explore the side panels, and delve into the process of connecting to a local host.

---

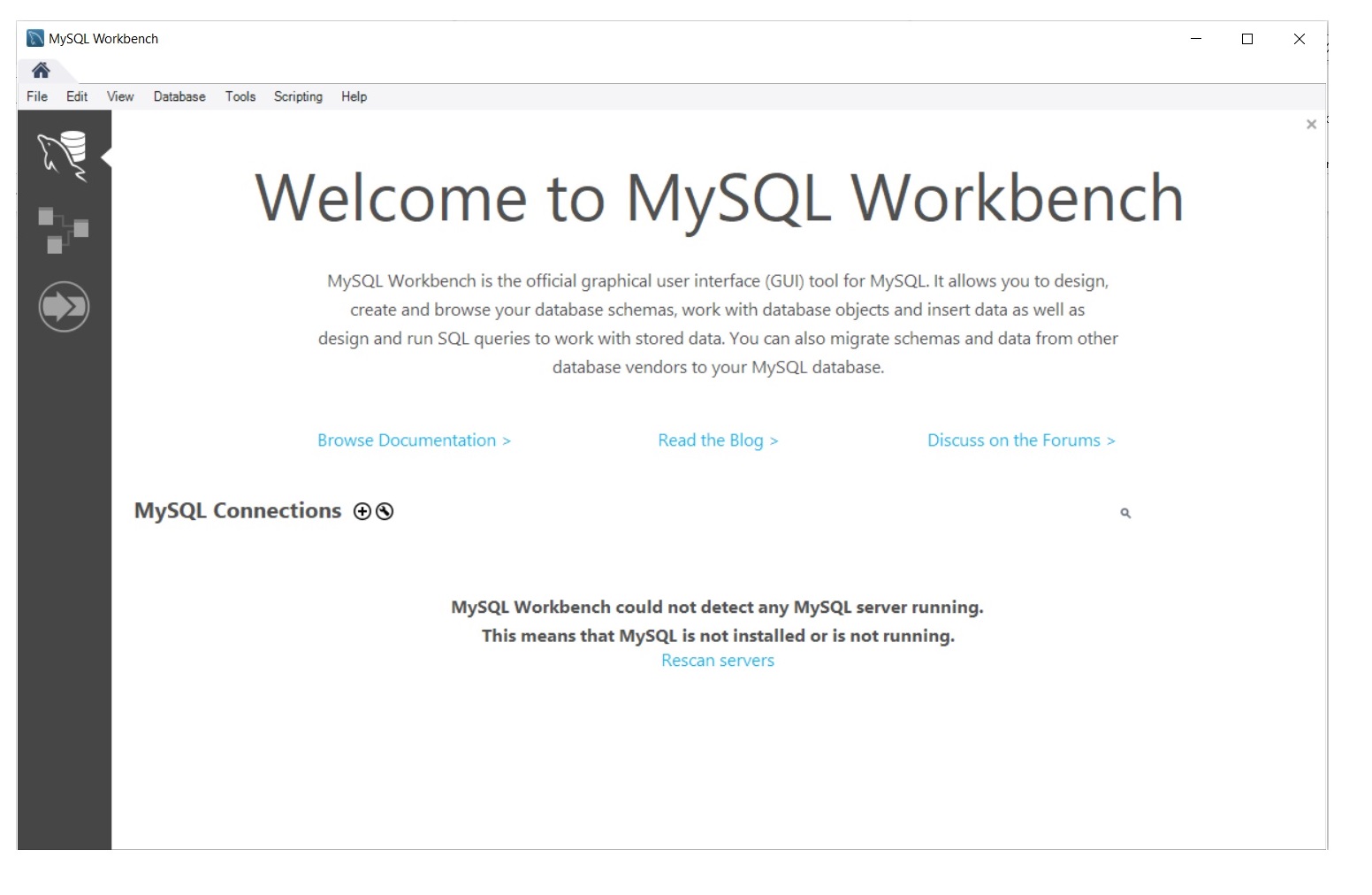

#1 - Home Screen Tab

In MySQL Workbench, the Home screen tab provides a central hub where you can access various features, tools, and resources related to MySQL. It serves as a starting point for managing your database connections, accessing documentation, and performing common tasks.

---

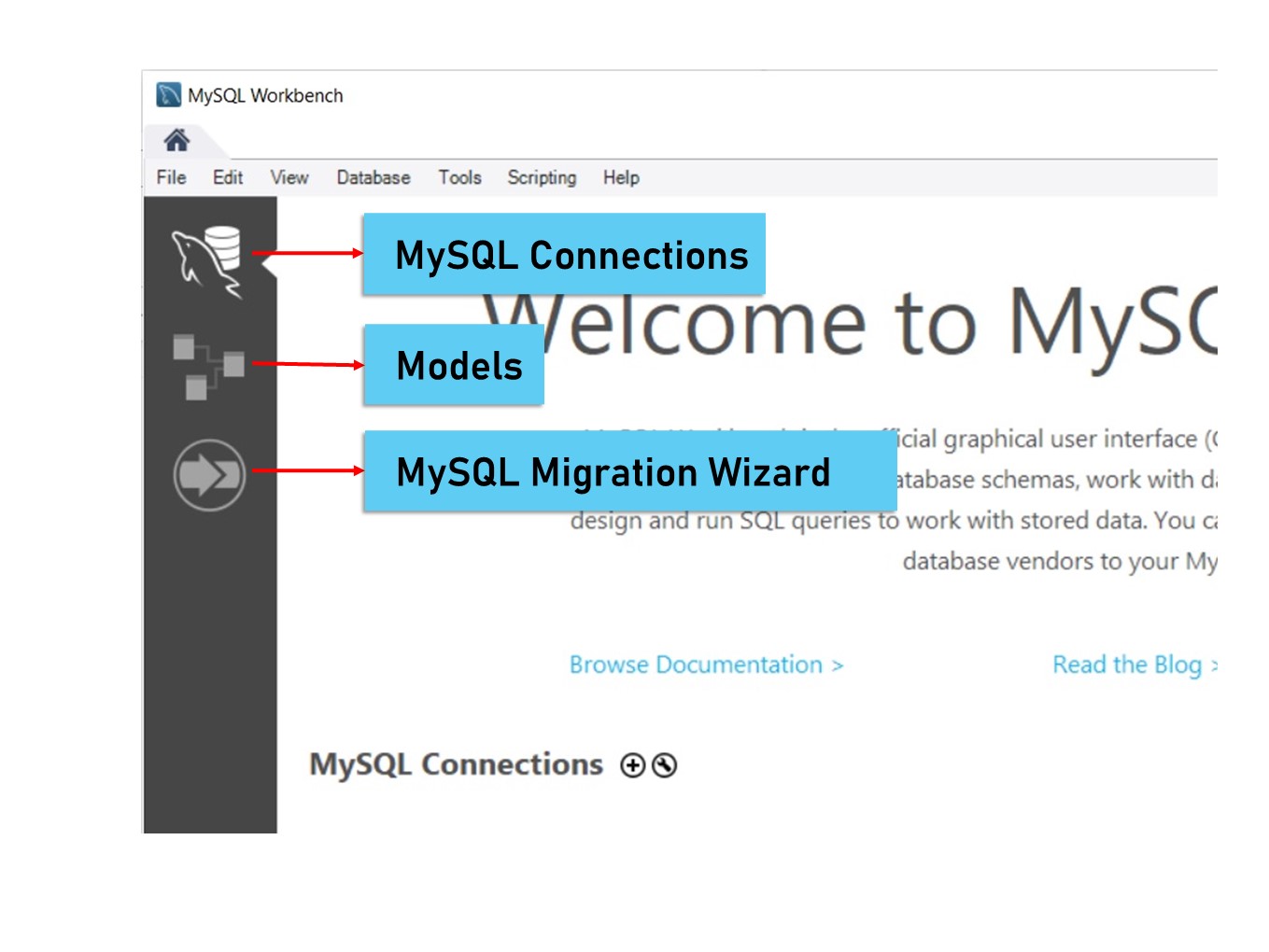

#2 - Side Panels

The three left tabs displayed in the Home screen of MySQL Workbench are "MySQL Connections," "Models," and "MySQL Migration Wizard." Here's an explanation of each tab:

MySQL Connections

The MySQL Connections tab allows you to manage your database connections within MySQL Workbench. It displays a list of configured MySQL server connections, enabling you to quickly access and interact with different databases.

Within the MySQL Connections tab, you can perform the following actions:

• Add a New Connection: You can create a new connection by clicking the "+" button and providing the necessary connection details such as hostname, port, username, and password. This allows you to establish a connection to a specific MySQL server.
• Edit and Delete Connections: You can modify the existing connections by selecting a connection from the list and using the "Edit" or "Delete" buttons. This allows you to update the connection details or remove a connection that is no longer needed.
• Connect to a Database: By selecting a connection and clicking the "Connect" button, you establish a connection to the associated MySQL server. Once connected, you can perform various tasks such as executing queries, managing databases, and monitoring server status.

The MySQL Connections tab provides a convenient way to manage and access your MySQL server connections from within MySQL Workbench.

Models

The Models tab is where you can create and manage database models using the MySQL Workbench modeling tools. It provides a visual interface for designing and visualizing database schemas using the Entity-Relationship Diagram (ERD) approach. Within the Models tab, you can:

• Create New Models: You can create a new database model by clicking the "+" button. This opens the modeling interface where you can define tables, columns, relationships, and other database elements.
• Manage Models: Existing database models are displayed in the list. You can open, edit, and save models, allowing you to modify the structure and design of the database.
• Reverse Engineer a Database: MySQL Workbench also allows you to reverse engineer an existing database, generating a model based on the database schema. This helps visualize the structure of an existing database.

The Models tab in MySQL Workbench is a powerful tool for database design and modeling, providing a visual representation of your database schema.

MySQL Migration Wizard

The MySQL Migration Wizard tab provides a wizard-like interface to guide you through the process of migrating data from other database systems to MySQL. It simplifies the task of transferring data from different sources into MySQL databases.

Within the MySQL Migration Wizard tab, you can:

• Select Source Database: You can choose the source database system from which you want to migrate the data. MySQL Workbench supports migration from various database systems, including Microsoft SQL Server, Oracle, PostgreSQL, and more.
• Configure Migration Settings: The wizard allows you to configure migration settings such as selecting the objects to migrate (tables, views, stored procedures), specifying the target MySQL server, and mapping data types between the source and target databases.
• Perform Migration: After configuring the settings, you can initiate the migration process. The wizard guides you through the steps and provides feedback on the progress and success of the migration.

The MySQL Migration Wizard simplifies the process of migrating data from other database systems to MySQL, making it easier to switch to MySQL or consolidate data from multiple sources.

These three tabs—MySQL Connections, Models, and MySQL Migration Wizard—provide convenient access to essential features and tools within MySQL Workbench, allowing you to manage connections, design databases, and migrate data efficiently.

---

#3 - Localhost Connection

In the MySQL Connections tab of MySQL Workbench's Home screen, "localhost" refers to the default hostname used to establish a connection to a MySQL server running on the same machine as MySQL Workbench. It is a commonly used term to indicate the local machine or the loopback address (IP address 127.0.0.1).

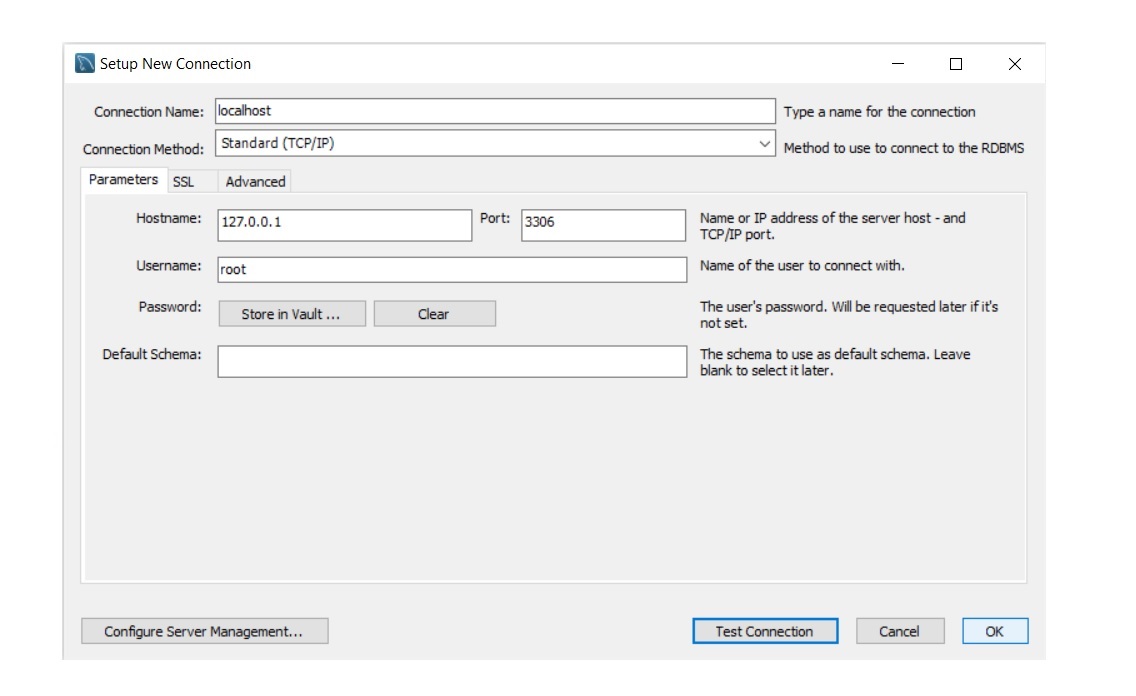

If you don't have a "localhost" connection listed in the MySQL Connections tab, you can set it up by following these steps:

Click the "+" button: In the MySQL Connections tab, click the "+" button to create a new connection.

Enter connection details: In the connection details form, provide the following information:

1. Connection Name: Give a descriptive name to the connection, such as "Localhost" or "Local MySQL Server."
2. Connection Method: Choose "Standard (TCP/IP)" as the connection method.
3. Hostname: Enter "localhost" or "127.0.0.1" as the hostname. These are the loopback addresses that refer to the local machine.
4. Port: By default, MySQL servers run on port 3306. Ensure the port number is set to 3306 unless you have specifically configured your MySQL server to use a different port.
5. Username and Password: Enter the username and password credentials to authenticate the connection to the MySQL server. These should be the credentials that you use to log in to your MySQL server.
6. Test the connection: Click the "Test Connection" button to verify that the connection to the local MySQL server is successful. If the connection test is successful, you should see a confirmation message.
7. Save the connection: Click the "OK" or "Apply" button to save the connection settings.

By following these steps, you can set up a "localhost" connection in the MySQL Connections tab of MySQL Workbench's Home screen. You can see the new connection (localhost) is displayed in the MySQL Connection. This allows you to establish a connection to a MySQL server running on your local machine and perform various tasks such as querying the database, managing databases, and more.
